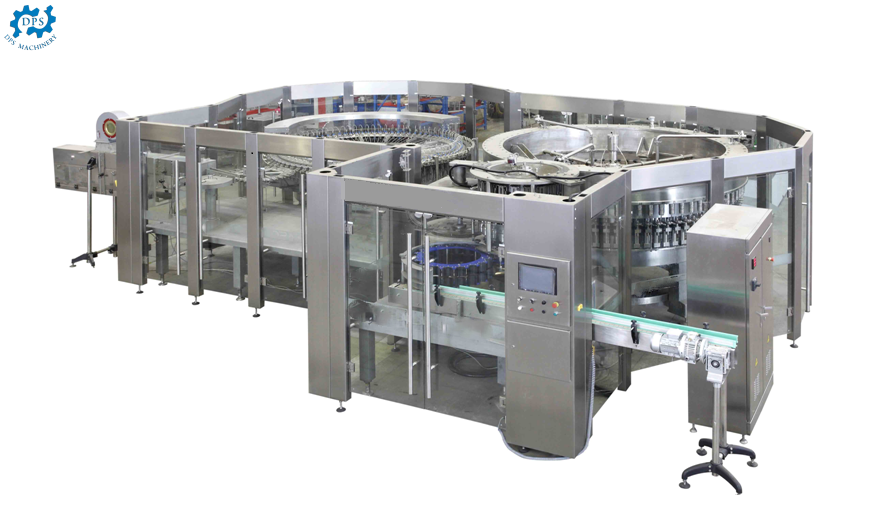

Automatic Water Filling Machine
bottle water filling machine
XGF series bottled water three-in-one filling machine,integrates with rinsing,filling and capping parts. Machine suitable for pure water,mineral water, spring water. Output 1000-36000 bottles per hour, which can be chosen by users.
Key Features
- Machine is used to produce PET bottles of mineral water, pure water, alcohol and other drinks without gas;
- This series equipment is three-in-one type, washing, filling and capping in one machine is available, highly automation;
- The structure of conveying is hanging type and clamping the bottle neck to easily change different bottle.
- Adopt the advanced PLC(Programmable Logic Controller) technology;
- Electrical components are all international well-known brands, such as Siemens、Mitsubishi, Schneider and Autonics;
- Machine parts which contact with filling material adopt high quality food grade S.S304, machine is more stable and durable.
Technical Specifications
Detailed model parameters for engineering and procurement reference.
| Model | Production Capacity | Filling Heads | Bottle Type | Power Consumption | Dimensions | Weight |
|---|---|---|---|---|---|---|
| XGF8-8-3 | 2000BPH | 8 | 250ml-2L | 2.5KW | 1800x1420x2200mm | 2000KG |
| XGF14-12-5 | 4000BPH | 12 | 250ml-2L | 3.5KW | 2360x1810x2500mm | 2500KG |
| XGF18-18-6 | 6000BPH | 18 | 250ml-2L | 4.5KW | 2450x1800x2200mm | 4500KG |
| XGF24-24-8 | 12000BPH | 24 | 250ml-2L | 4.5KW | 2750x2180x2400mm | 4500KG |
| XGF32-32-10 | 15000BPH | 32 | 250ml-2L | 6KW | 3800x2200x2400mm | 5000KG |
| XGF40-40-12 | 18000BPH | 40 | 250ml-2L | 7.5KW | 4550x2650x2300mm | 8500KG |
| CGF50-50-12 | 24000BPH | 40 | 250ml-2L | 8.5KW | 5450X3300X2900mm | 9800KG |
| XGF60-60-18 | 30000BPH | 60 | 250ml-2L | 11.2KW | 6500x4500x2900mm | 12.8T |
* Specifications are subject to change without notice. Contact us for the latest technical data.

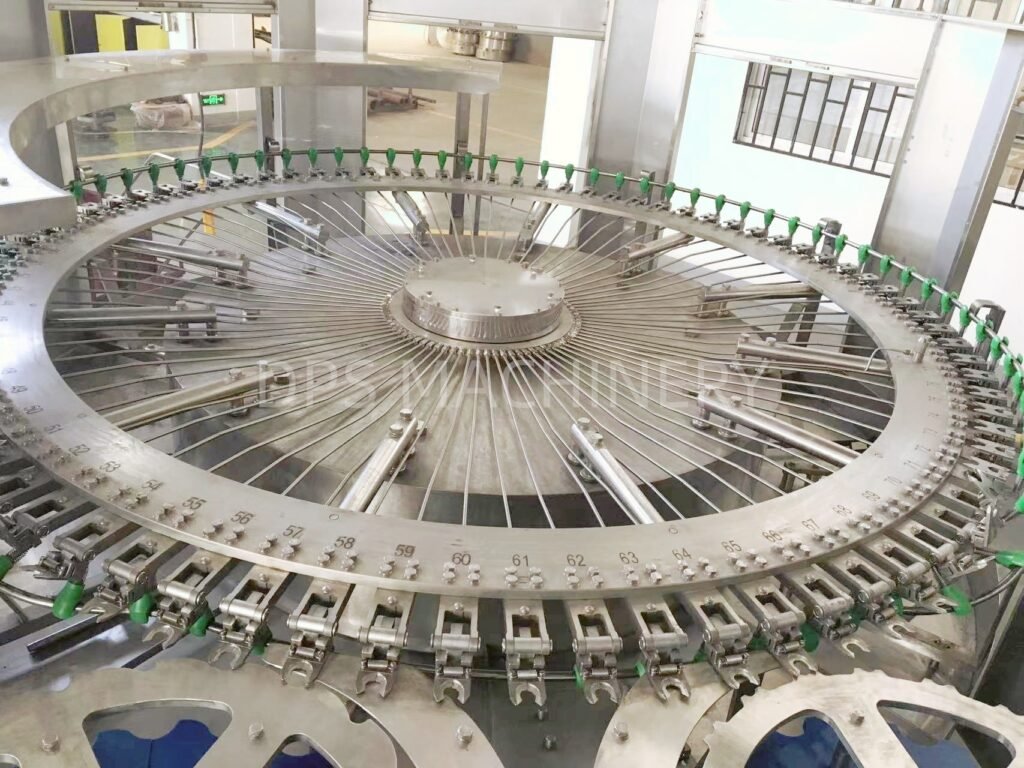

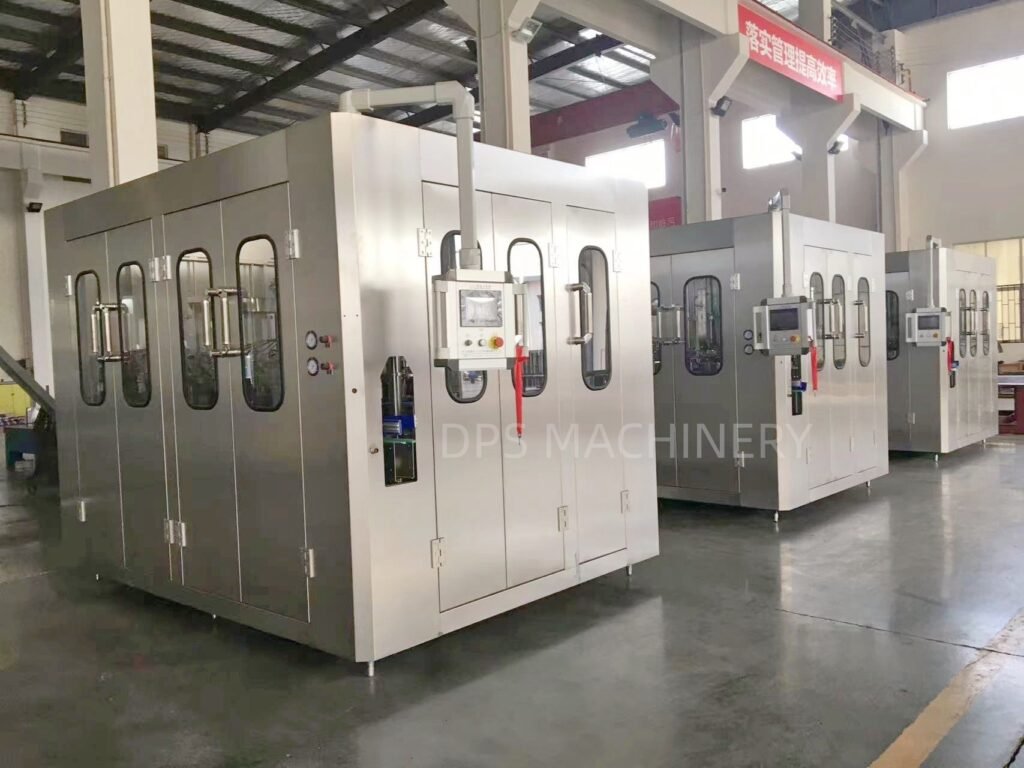

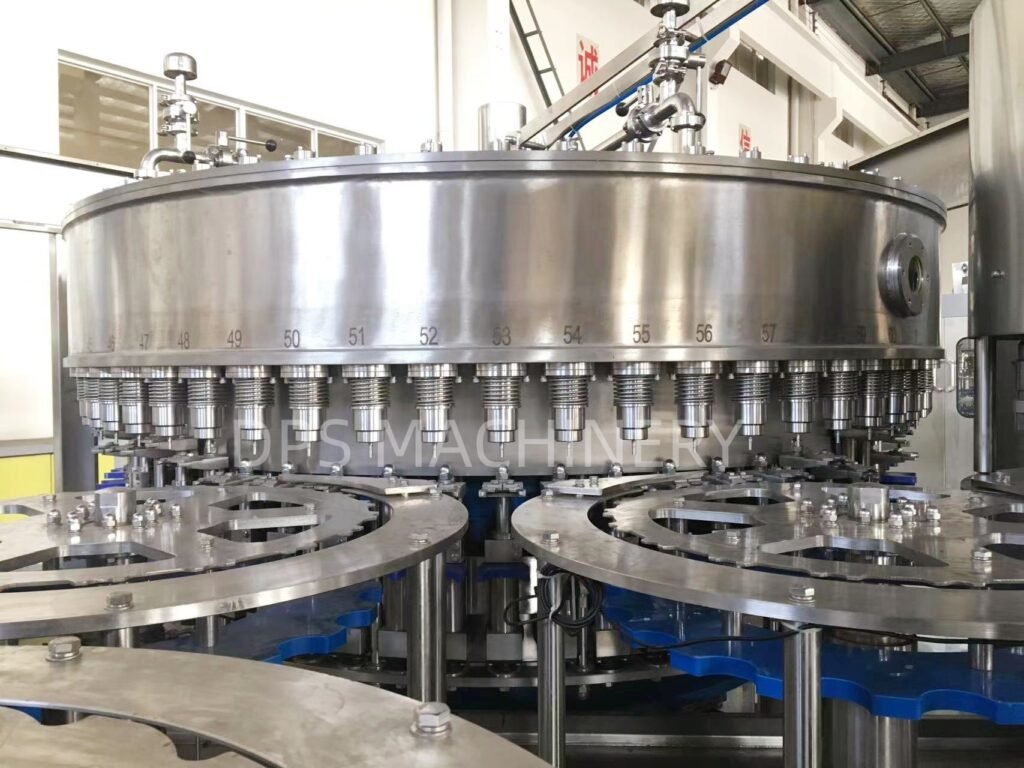

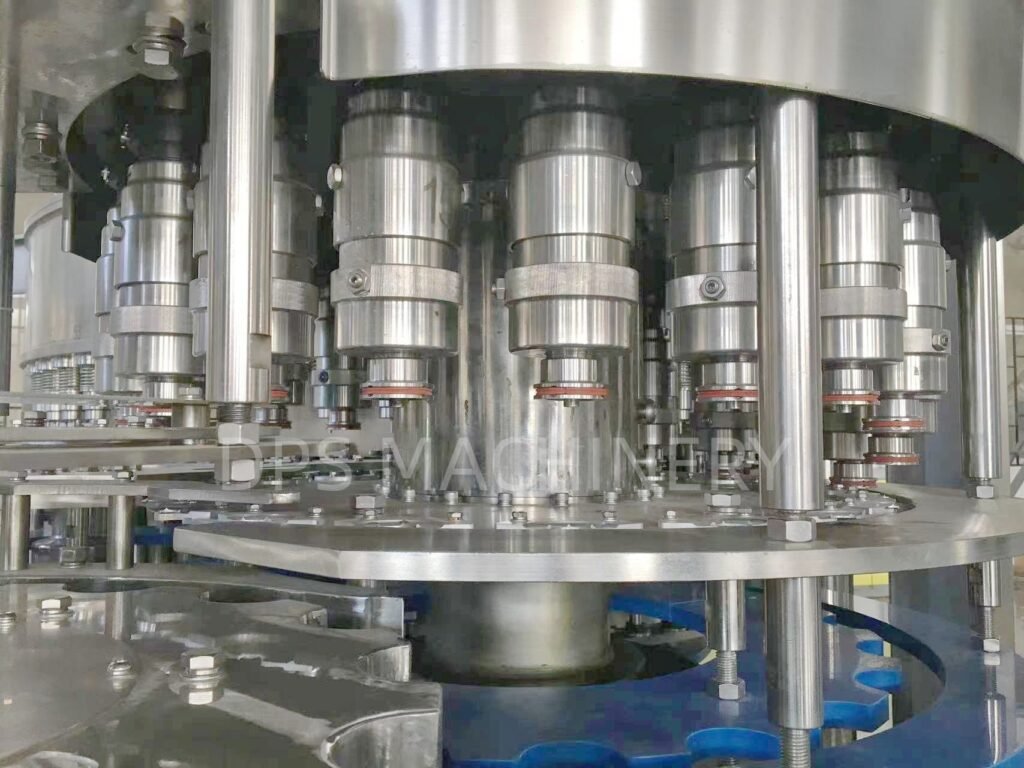

Machine in Action
