Automatic Juice Filling Machine
juice filling production line
Juice filling machine is mainly suitable for juice filling process.Machine combine with the function of washing filling capping in one machine, the whole process is automated.Machine is suitable for PET/plastic bottle juice, tea,mineral water,pure water etc..
Key Features
- Juice filling machine each part suitable bottle can be easily adjusted,fast and convenient.
- Machine adopt hot filling process,stable and reliable,so compare with the same specifications machine,this machine have great efficiency.
- Juice filling machine adopts advanced PLC to control the machine automatically running.
- Juice filling machine photoelectric detection each parts running status,so it has the advantage of highly automatic degree,easily operation.
Technical Specifications
Detailed model parameters for engineering and procurement reference.
| Model | Production Capacity | Filling Heads | Bottle Type | Power Consumption | Dimensions | Weight |
|---|---|---|---|---|---|---|
| RCGF14-12-5 | 3000BPH | 12 | 250ml-2L | 2.2 | L2300xW1600xH2500mm | 2600KG |
| RCGF18-18-6 | 5000BPH | 18 | 250ml-2L | 3.5KW | L2600xW1920xH2550mm | 3500KG |
| RCGF24-24-8 | 8000BPH | 24 | 250ml-2L | 4.5KW | L3100xW2100xH2800mm | 4200KG |
| RCGF32-32-10 | 12000BPH | 32 | 250ml-2L | 6KW | L3850xW3000xH2850mm | 6000KG |
| RCGF40-40-10 | 15000BPH | 40 | 250ml-2L | 7.5KW | L4850xW3800xH2750mm | 8000KG |
| RCGF50-50-12 | 18000BPH | 50 | 250ml-2L | 9.5KW | L5750xW3550xH2750mm | 10000KG |
| RCGF60-60-15 | 24000BPH | 60 | 250ml-2L | 11.2KW | L6500xW5500xH2750mm | 12000KG |
| RCGF72-72-18 | 28000BPH | 72 | 250ml-2L | 15KW | L6800xW4800xH2850mm | 15000KG |
* Specifications are subject to change without notice. Contact us for the latest technical data.

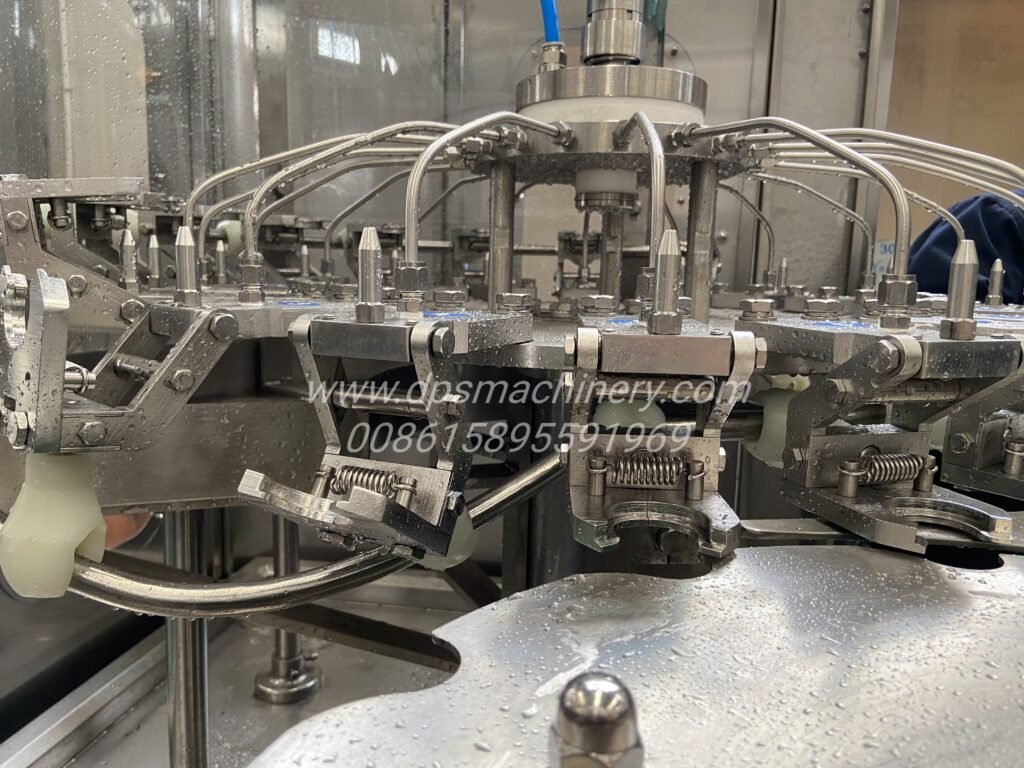

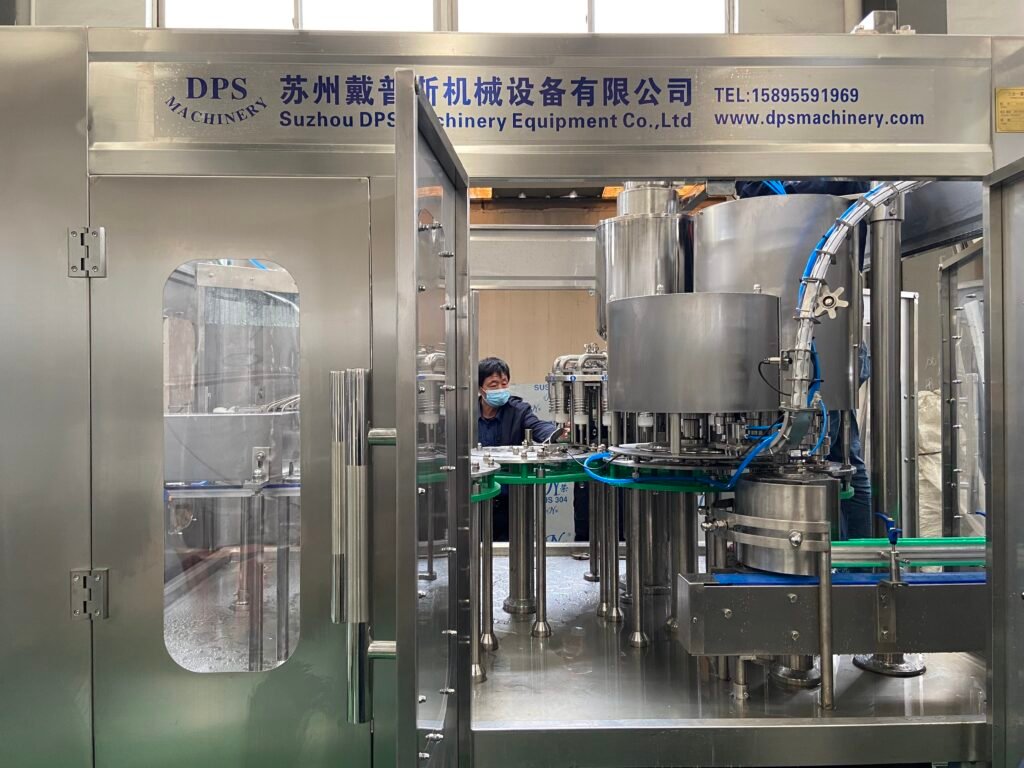

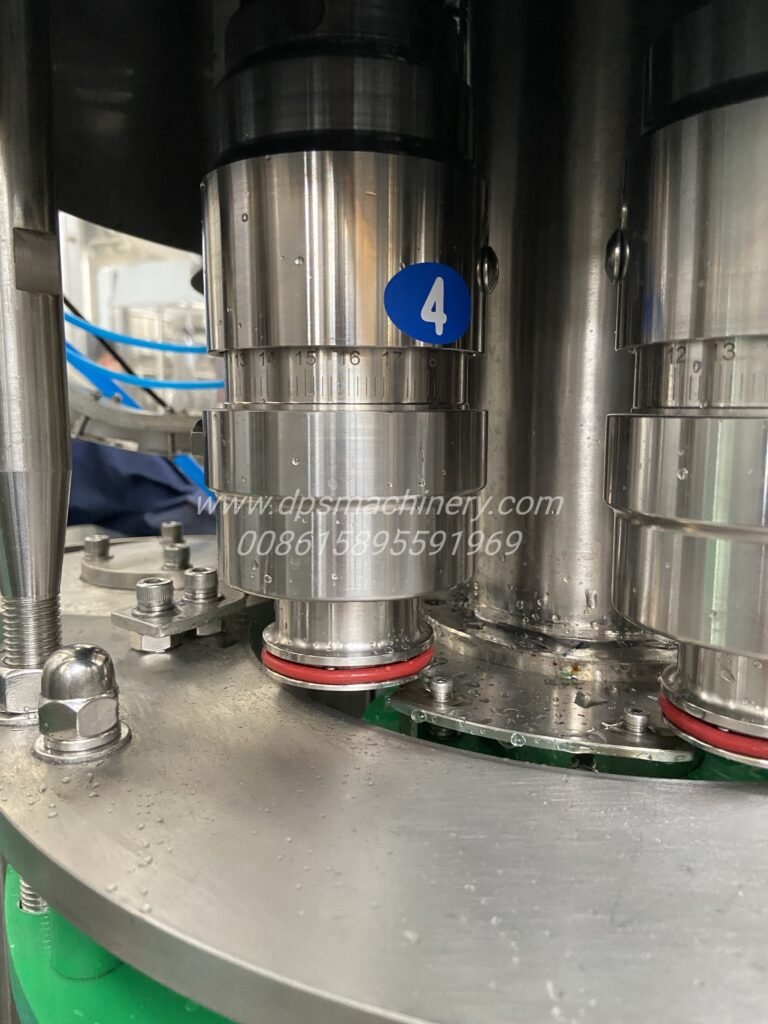

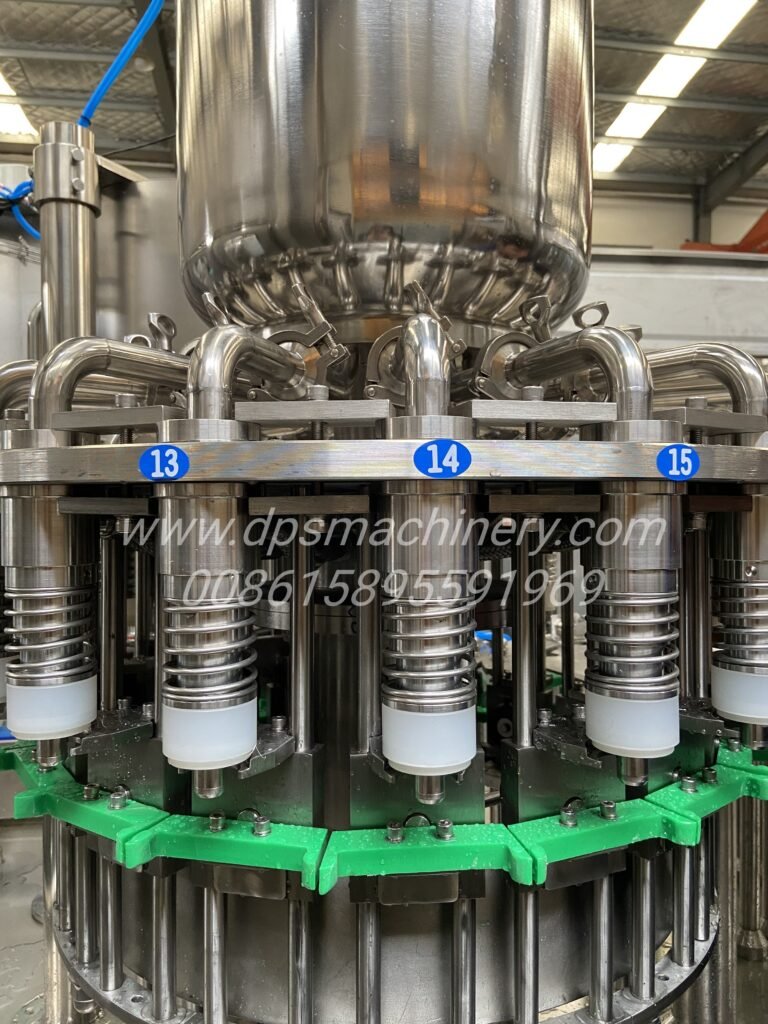

Machine in Action
Interested in the
Automatic Juice Filling Machine?
Contact our engineering team for pricing, customization options, and delivery timelines. We respond within 24 hours.
- Factory layout & installation support
- Custom configurations available
- Global export & after-sales service
