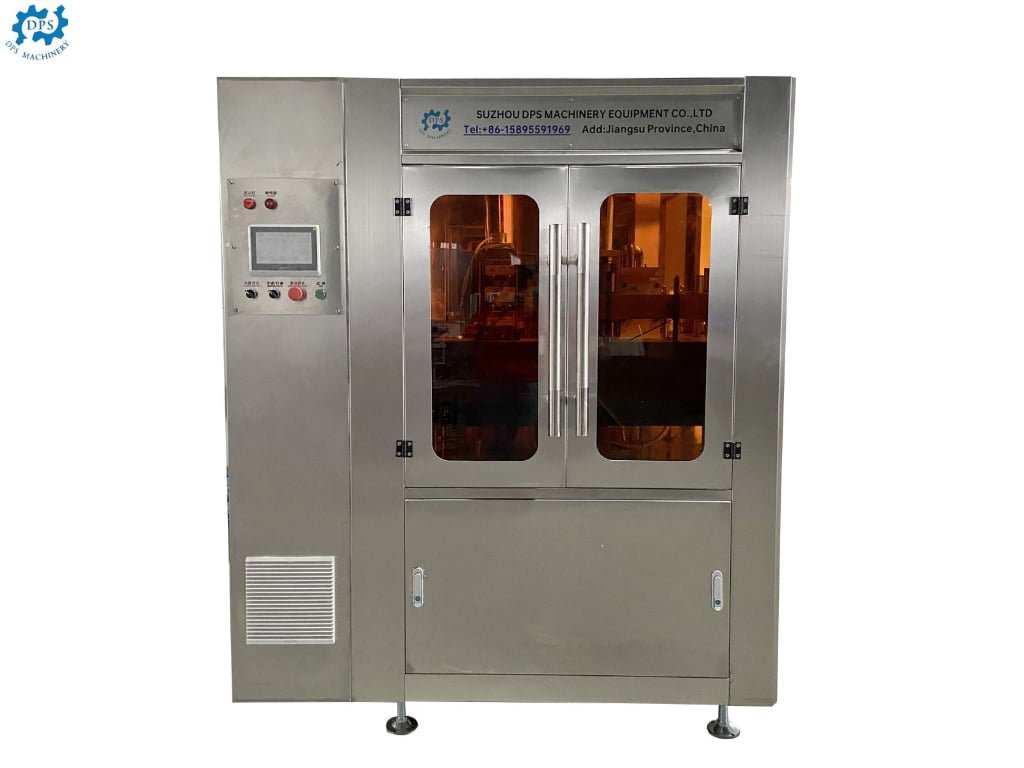

Automatic OPP Labeling Machine
automatic hot melt glue BOPP labeller
Automatic hot melt glue opp labeling machine is widely used for drinking water,beverage,condiment,alcohol,daily chemicals, food industries and so on; Machine can be used for hot melt labeling of plastic bottles,glass bottles,metal cans,PET bottles and other round and square bottles.
Key Features
- Machine adopt Schneider control system, easy operation,stable and reliable operation.
- Imported deviation correction system is perfectly combined with advanced gluing system and vacuum drum to ensure high labeling accuracy.Only apply glue on both ends of the label,use less glue and save costs.
- Synchronous gear transmission system, screw and star wheel to cooperate with the bottle in and out, to ensure smooth and stable product in and out when running at high speed.
- Machine speed is 5000-30000 bottles per hour, can connect with the high speed filling line, which greatly improves the production speed and saves the production cost.
Technical Specifications
Detailed model parameters for engineering and procurement reference.
| Model | Production Capacity | Filling Heads | Bottle Type | Power Consumption | Dimensions | Weight |
|---|---|---|---|---|---|---|
| DPS-RT10 | 10000BPH | 10 Head | 250ml-2L | 9KW | 2100x1900x2000mm | 1250KG |
| DPS-RT12 | 15000BPH | 12 Head | 250ml-2L | 12KW | 2450X2500X2100mm | 1500KG |
| DPS-RT15 | 18000BPH | 15 Head | 250ml-2L | 15KW | 2450X2500X2100mm | 1800KG |
| DPS-RT24 | 30000BPH | 24 Head | 250ml-2L | 18KW | 2680X2620X2200mm | 2000KG |
* Specifications are subject to change without notice. Contact us for the latest technical data.

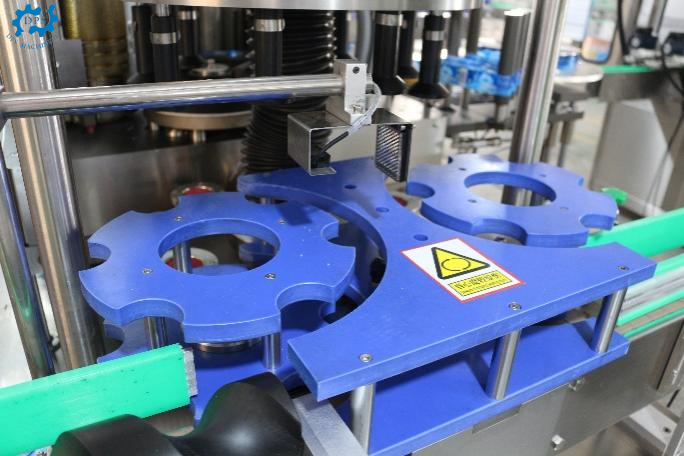

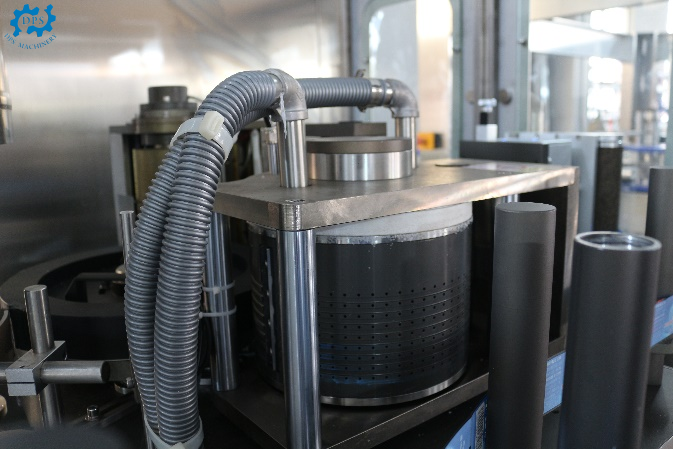

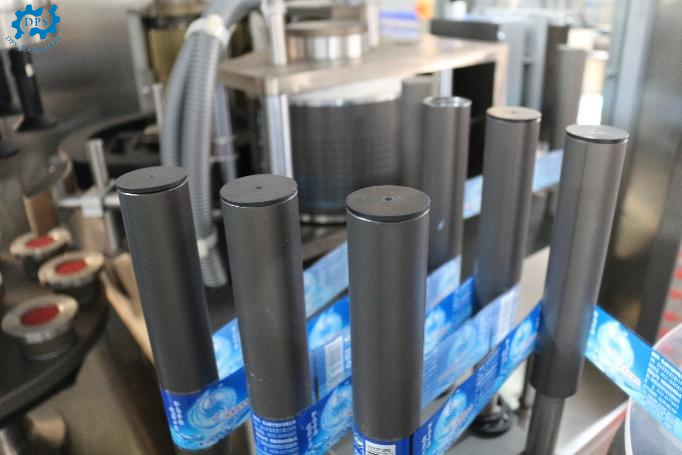

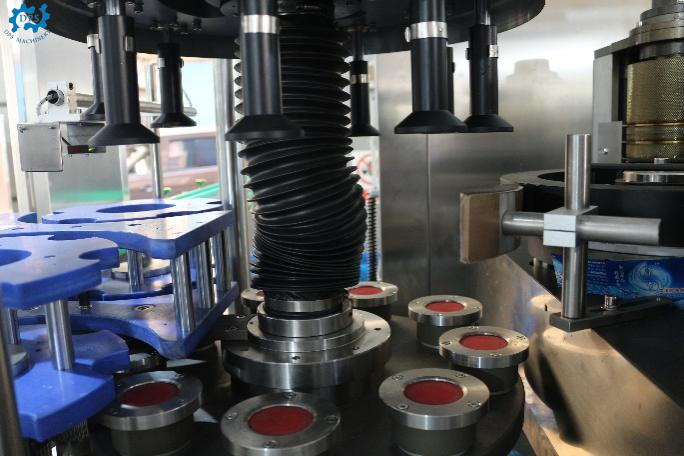

Machine in Action
Interested in the
Automatic OPP Labeling Machine?
Contact our engineering team for pricing, customization options, and delivery timelines. We respond within 24 hours.
- Factory layout & installation support
- Custom configurations available
- Global export & after-sales service
